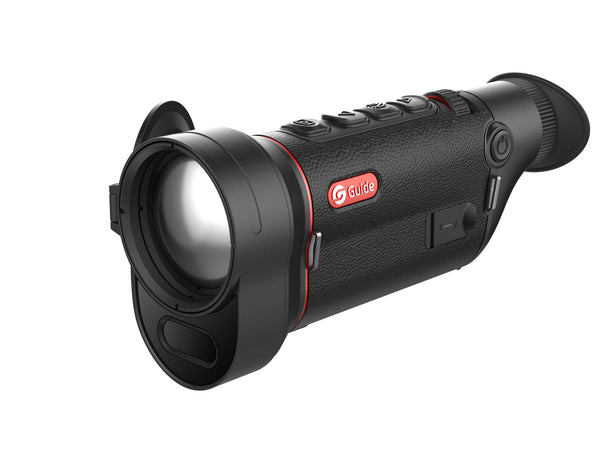

Guide TD653L 50mm 640x512 Hand Held Monocular Thermal

OUR PRICE $4,099.00

Guide TD653L 50mm 640x512 Hand Held Monocular Thermal

The TD Gen3 LRF Series handheld thermal imaging monocular innovatively integrates a laser rangefinder while maintaining a compact design. The focusing roller allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with either hand. With an impressive 12-hour battery life and IP67, it is well-equipped to handle various outdoor challenges. Featuring Wi-Fi connection, it enhances the efficiency and enjoyment of your exploration.

High-Sensitivity Detector, NETD Down to 20mk

The TD Gen3 LRF Series features 12µm infrared detector with 640×512 and 400×300 resolutions, and offers optional 19mm, 25mm, 35mm and 50mm lenses, delivering impressively crisp images even in complete darkness.

Ambidextrous Design, One Handed Operation

The symmetrical housing design allows for easy operation with both left and right hands. Its button layout is ergonomically crafted to suit user habits, enabling one-handed operation.

Fine-Tuning Focus, Scroll with Fingers

The mini focusing roller design offers a unique experience of fast and precise fine-tuning, allowing users to adjust the focus with a simple scroll of one finger.

Upgraded Visuals, Enlarged AMOLED Display

Building on the previous generation, the TD Gen3 LRF Series features a 0.36” AMOLED display with a 1280×960 resolution, delivering more vivid details and a more comfortable viewing experience.

50mm Lens, See Farther

To deliver sharp, detailed images for long-range shooting, the TD Gen3 LRF Series utilizes 35mm and 50mm lenses, providing a highly detailed view at distances up to 2600m.

Built-in LRF, Precise Target Distance

The built-in laser rangefinder module is seamlessly integrated into the device design, enhancing portability and practicality, with a maximum range of 1000 meters for precise target location.

Extended Battery Life, Uninterrupted Power

During observation, exploration and stalking in the field, the TD Gen3 LRF Series offers an impressive 12-hour runtime. The replaceable 18650 battery supports blind installation in the dark, with no need to distinguish between the positive and negative terminals.

Smart Recording, Expanded Built-in Storage

The upgraded smart recording function can capture videos with sound. It’s built-in storage of up to 32GB allows users to store over 100,000 pictures without worrying about running out of space.

Specifications for Guide TD653L 50mm 640x512 Hand Held Monocular Thermal:

Sensor

  • Type: Uncooled VOx Infrared Detector, 8 to 14µm
  • Resolution: 640×512@12µm
  • NETD: 20mK
  • Frame rate: 50Hz

Lens

  • Objective lens: 50mm, F1.0
  • Field of view: 8.8°×6.6°
  • FOV m@100m: 15×12
  • Magnification: 2.6x~20.8x
  • Detection range: 2600m/2800yd
  • Focus: Manual

Display

  • Display type: 0.36'' AMOLED 1280×960
  • Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
  • Eyepiece: Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x

Hardware

  • Laser rangefinder: 1000m/1090yd
  • WIFI: 2.4G, 5G
  • Interface: USB-C
  • Others: Microphone, Bluetooth

System

  • Recording function: Photo/Video (Audio recording included)
  • Memory capacity: 32GB

Power

  • Battery type: Single, Replaceable 18650 Battery
  • Operating time: 10 hours

Environmental

  • Operating temp.: -20°C to 50°C / -4°F to +122°F
  • Encapsulation: IP67

Physical

  • Weight (g/oz): 472/16.65
  • Size (mm/in): 189.5×67.5×88/7.46×2.66×3.46
  • Standard: Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
  • Optional: Bluetooth Remote Control, 18650 Battery
