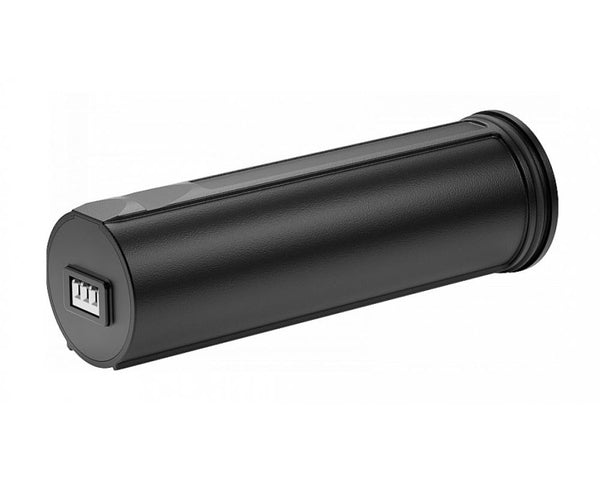

Pulsar APS 3 Battery Pack

Pulsar Monocular Telos XL50 Laser Range Finder |  2.5-20x8 Magnification (50mm)

The Pulsar LRF Telos thermal imaging monoculars are state-of-the-art devices designed for superior performance in various outdoor and professional applications. Featuring highly sensitive thermal imaging sensors, these monoculars provide exceptional image clarity and detail, even in total darkness or challenging weather conditions. The LRF models feature objective ring zoom control and precise laser ranging up to 1000m, ensuring accurate targeting and enhanced observation capabilities for various applications.

Integrated with a built-in video recorder and 64GB of internal memory, the Telos monoculars allow users to capture and store extensive footage directly on the device. Additionally, the Stream Vision 2 app provides seamless Wi-Fi integration with both iOS and Android devices, supporting dual Wi-Fi wavebands (2.4/5 GHz) for fast and reliable connectivity.

The vertical symmetrical layout of the controls allows Telos to be used with both hands with the same degree of comfort - the buttons are located in a row on the top panel, and the lens rings are used for focusing and changing magnification.

The Telos LRF line also feature a selection of 8 color palettes, allowing users to customize their viewing experience based on specific needs and preferences. The replaceable battery pack offers direct plug and wireless fast charge options, ensuring long-lasting power and quick recharging for uninterrupted use.

Overall, the Pulsar Telos LRF thermal imaging monoculars are designed to provide professional-grade performance, combining advanced optics, durable construction, and user-friendly features for a wide range of thermal imaging applications.

Precise Laser Rangefinder

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 metre for quick and error-free assessment of the situation.

Built in Video Recorder with 64GB Internal Memory

The Telos has a built-in video recorder. The increased 64GB internal memory of the Telos can store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording video.

Fast Aperture F/1.0 Germanium Lens

The characteristics of thermal imaging optics have a decisive influence on a thermal imagers ability to capture even the lowest radiation levels. Ultimate detection efficiency is achieved with the fast lens of the Telos (F/1.0) thermal imager in combination with highly sensitive thermal sensor. The Telos gives users the best quality, most detailed & high-contrast, informative imagery every time, even during rain or fog, when the temperature contrast of the observed scene is minimal.

High-Contrast AMOLED Display

The 1024x768 pixel resolution AMOLED display has improved colour rendering, is power saving, offers high contrast imagery and a quick-response, as well as providing clear & smooth images when observing on-the-move or in cold conditions.

Operation in Extreme Temperatures -25 to + 40 Degrees Celsius

Housing, power unit, optics and electronics of Telos are designed with regard to applications in wide range of temperatures. Telos ensures reliable and effective performance in freezing cold up to -25°C

IPX7 Submersion Waterproof Rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Dual Wi-Fi Waveband Support 2.4 / 5 GHz

In Telos thermal monoculars, the standard smartphone connection frequency range via a 2.4 GHz Wi-Fi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal monocular with a smartphone.

Stream Vision 2. Wi-Fi Integration with IOS and Android Devices

Built-in Wi-Fi connects the Telos to Android and iOS smartphones via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.

A Selection of 8 Colour Palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Specifications for Pulsar Monocular Telos XL50:

• Sensor: 1024x768 @ µm (NETD <40 mK)
• Objective Lens: F50 / 1.0
• Magnification, x: 2.5-20 (x8 zoom)
• Field of view (HxV), degrees / m@100m: 14x10.5 / 24.6x18.5
• Detection Range: 2300 m
• Weight: 0.73 kg

The Telos XP50 stands as an extremely powerful optic. With an industry-leading <18mK NETD sensor and enhanced image processing algorithms, this extremely powerful thermal monocular gives users highly refined details, even in the toughest conditions.

For the first time in a Pulsar product, the Telos XP50’s adjustment rings allow users to gradually zoom in and focus in one fluid motion. This fine camera-like digital control system allows smooth magnification adjustments and pristine quality even at high magnifications. Its built-in laser rangefinder has a range of 1000 Metres – helping users survey areas and target objects within a practical accuracy of 1 Metre.

Further enhancing its long-range viewing abilities, the Telos XP50 has a detection range of more than 1,800 Metres, capable of detecting human-sized heat sources in the harshest weather.

The Telos XP50 pro is also built to last. From arctic conditions to wetland swamps, this unit continuously provides reliable heat detection. With a temperature resistance of -25 to +40°C the Telos is built to withstand different environments, hot or cold.

Outfitted with a brand new LPS 7i quick-charge Lithium-ion battery, the Telos has more than 8.5 hours of battery life and can be charged with any USB-C compatible charging device, including common cellphone chargers. The LPS 7i also supports wireless charging.

Designed for longevity and crafted with care and precision, Pulsar’s Telos XP50 is the only thermal monocular you will ever need.

Features

• Highly sensitive thermal sensor
• Advanced Pulsar Image Boost technology
• Objective ring zoom control
• Built for the toughest conditions
• Replaceable battery pack with direct plug & wireless fast charge options
• Ergonomic, nonslip rubber-coated housing
• Adaptable for left- and right-handed use
• Ergonomic and functional carrying case
• User Mode saves selected brightness and contrast settings
• 1000 m range for LRF (Laser Range Finder)
• 1800 m Thermal detection range
• Stream Vision 2. Wi-Fi integration with iOS and Android devices
• Fast aperture F50/1.0 germanium lens
• High-contrast AMOLED display
• IPX7 submersion waterproof-rated
• Built-in video recorder with 64GB internal memory
• A selection of 8 colour palettes

Main

• Sensor: 640x480 pix. @ 17 µm (NETD <18 mK)
• Objective lens: F50 / 1.0
• Magnification: 2.5 – 10x (x4 zoom)
• Field of view (HxV), degrees / m @100m: 12.4x9.3° / 21.8x16.3°
• Eye relief: 14 mm
• Detection range: 1800 m
• Operating time on battery pack (at t=22°C): 8.5 Hours
• Sensor
• Type: uncooled
• Resolution: 640x480 p
• Pixel pitch: 17 µm
• NETD: <18 mK

Display

• Type: AMOLED HD
• Resolution: 1024x768 p
• Frame rate: 50Hz

Video Recorder

• Video / photo resolution: 1024x768p
• Video / photo format: .mp4 / .jpg
• Built-in memory,: 64 gb

Laser Rangefinder

• Safety class for laser equipment according to IEC 60825-1:2014: 1
• Wavelength: 905 nm
• Max. measuring range: 1000 m
• Measurement accuracy: ± 1 m

Wi-Fi

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 Ghz

Environmental Characteristics

•  Degree of protection, IP code (IEC60529): IPХ7 (waterproof)
• Operating temperature range: -25 – +40 °С

Connections and Compatibilities

• Mount Type: 1/4"
• Supported Application: Stream Vision 2

Power Supply

• Output voltage: 3.0 – 4.2 V
•  Battery type: LPS 7i Li-Ion Battery Pack
• Capacity: 6400 mAh
• Operating time on battery pack (at t=22°C): 8.5 Hours
• External power supply: 5V & 9V (USB Type-C Power Delivery)

Weight & Size

• Body material: Rubber armoured reinforced plastic
• Dimensions: 238 x 72 x 90 mm
• Weight: 720 grams

The first thermal imaging riflescope with classic design and built-in laser rangefinder

The laser rangefinder is seamlessly integrated into a slim design riflescope. The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 metres – the Thermion 2 LRF provides the hunter with an accurate sense of distance at the hunting site helping to take a precise shot.

Features:
• Variable magnification
• High-precision aiming in the "Picture-in-picture" mode
• 5 individual shooting profiles / 50 zeroing distances
• A selection of 10 reticle shapes in 9 color modes
• Mounting on standard 30 mm rings
• Instant Start-up
• High caliber recoil resistance: 12 gauge, 9.3x64, .375H&H
• Completely waterproof IPX7
• Operating temperature range: -25 to +50 °C
• High contrast HD AMOLED display
• A selection of 8 color palettes
• Wide-angle eyepiece for comfortable observation
• Photo and video recording
• Stream Vision 2. WiFi integration with iOS and Android devices

Specifications:
• Sensor: 384x288 @ 17 µm (NETD <25 mK)
• Objective lens: F50 F/1.0
• Magnification: 3-12x
• Detection range: 1800 m
• Field of view (HxV), degrees / m@100m: 7.5 / 13.1
• Eye relief: 50 mm
• Type: Uncooled
• Resolution: 384x288 Pixels
• Pixel pitch: 17 µm
• NETD: <25 mK
• Frame rate: 50 Hz
• Type: AMOLED
• Resolution: 1024х768 Pixels
• Click value H/V(mm at 100 m): 13 – 3х 6.5 – 6х 3.25 – 12
• Click range H/V(mm at 100 m): 2600 / 2600
• Number of preloaded reticles: 10+
• Video / photo resolution: 1024x768 Pixels
• Video / photo format: .mp4 / .jpg
• Built-in memory: 16 GB
• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GHz
• Degree of protection, IP code (IEC60529): IPX7
• Operating temperature range: -25 – +50 °С
• Max. recoil power on rifled weapon: 6000 Joules
• Compatible mounts: Standard 30 mm Rings
• Supported Application: Stream Vision 2
• Output voltage: 3.7 V
• Battery type: Li-ion APS2
• Capacity: 4900 mAh
• Operating time on battery pack(at t=22°C): 10 hours
• External power supply: 5 V /9 V (USB Type-C Power Delivery)
• Body material: Aluminum
• Dimensions: 420 x 78.5 x 94.5 mm
• Weight: 0.97 Kg

Laser Rangefinder
• Wavelength: 905 nm
• Max. measuring range: 800 m
• Measurement accuracy: ± 1

Warranty period on new thermal optics:
• Pulsar: 3 Year manufacturers warranty
• Guide: 1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty
• InfiRay: 2 Year warranty: https://www.infiray.com/uploads/file/after-sales-service-policy.pdf

Please note: Manufacturers warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period that what is specified for the units above. The warranty does not cover mis-use or accidental damage caused by the operator.

Introducing the Pulsar Talion XQ35 Pro Thermal Rifle Hunting Scope. Replacing the previous Talion XQ38 model, the new XQ35 Pro offers an improved image quality, <25mk NETD rating for more detailed imaging and a wider field of view. The Pulsar Talion XQ35 Pro takes an already great scope and makes it even better!

The Pulsar Talion XQ35 Pro's 384x288 thermal resolution enables you to detect targets with utmost clarity, even in challenging environments and poor conditions. With a remarkable sub <25mk NETD rating sensor, you'll experience enhanced sensitivity, providing a significant advantage when spotting animals at a wide range of distances

Equipped with a 2.5x base magnification and wide FOV, the Talion XQ35 Pro lets you observe targets up close but the powerful 10x digital zoom allows you to hone in on your target at longer ranges ensuring you never miss a shot. Whether it's a distant coyote or an up close hog lurking in the brush, the XQ35 Pro provides a positive ID range at up to 250 yards, giving you the confidence to make accurate decisions in the heat of the hunt.

Not only does the Pulsar Talion XQ35 Pro deliver excellent performance, but it also includes a huge list of great features such as; internal audio and video recording, WiFi streaming with the Pulsar Stream Vision 2 app, picture in picture function, multiple reticles options and a wide variety of color pallets. With a recoil rating up to a 12 gauge shotgun or a .375 H&H and multiple rifle zeroing profiles, you can easily swap the Talion between different rifles. The Talion also features a fully removable and rechargeable Pulsar APS5-T battery pack that will allow you to stay in the field for hours on end.

If you're looking for an affordable thermal scope that still offers great image quality and all the features you want and need for your time in the field, look no further than the Pulsar Talion XQ35 Pro.

Features

• Long operation time on a single charge

Talion is powered with a Pulsar APS 5T interchangeable, rechargeable battery. A single charge guarantees up to 9 hours of battery life (Talion XQ series), which covers the time of active use of the scope for a hunt. The battery cover design helps to accurately determine the correct position and makes it possible to quickly replace a flat battery with a new one in complete darkness by touch alone.

• Multi-point prism mount for precise positioning on a rifle

A mounting prism with multiple screw points to ensure flexibility and convenience when installing a Talion riflescope on various types of rifles. During installation the user can shift the scope along the rifle to the most comfortable viewing position.

• All control elements in direct access

All Talion riflescope controls are placed on the top panel of the eyepiece to simplify access and for the convenience of both right- and left-handed users.

• Rapid battery extraction mechanism

Unique battery cover design with rapid extraction lock ensures fast and flawless battery replacement. Releasing the lock opens and raises the battery cover at the top of the riflescope’s housing for quick access to rechargeable battery.

• Focus adjustment with tactile marker set for night-time shot

The precise focusing adjustment has an integrated fin lever that is set to match the protruding ridge on the housing of Talion riflescope when focusing reaches 70 m (76 yd) mark, the night-time shooting distance. This enables quick and correct focusing, even without looking at the riflescope.

More sensitive than ever

• User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device's memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

• 3 sensitivity amplification levels

Selection of the signal amplification level combined with new filtration algorithms with fine brightness and contrast adjustments offers the hunter great opportunities for long-range detection of game under diverse weather and temperature conditions. The amplification setting helps to define an animal’s trophy features and ensures clear rendering of objects and background in the field of view.

• Lightweight and rugged magnesium alloy housing

The Talion’s housing is made of magnesium alloy to ensure great structural strength and retain a light weight. The robust and lightweight metal housing serves also as a heat sink extracting the warmth generated by inner electronics thus making thermal imaging device more sensitive.

• Photo and video recording

Keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording video. 16 GB of internal memory enables recording many hours of video and tens of thousands of photos.

• Wi-Fi integration with iOS and Android devices. Stream Vision 2 application

The built-in Wi-Fi module will connect the device with smartphones based on Android and iOS via the Stream Vision 2 mobile application. This combination provides a great opportunity, such as wireless updating of the device software, transmission of images to a mobile device screen in real time, remote control of digital functions and many others. Users registered in the application are provided with cloud storage space for photos and videos taken with a digital or thermal imaging device.

• Waterproof IPX7 housing

With an IPX7 waterproof rating, Talion riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion under water to a depth of 1 meter.

High calibre recoil resistance: 12 gauge, 9.3x64, .375H&H

Talion thermal riflescopes are high impact resistant and can be used with rifled hunting weapons with calibres of 9.3x64, .30-06, .300, .375H&H, etc., as well as with smooth-bore and pneumatic weapons.

• 5 shooting profiles / 50 zeroing distances

Zeroing settings are saved in a shooting profile. Talion memory contains up to five shooting profiles for several types of weapons or cartridges. Each profile can hold up to ten zeroing distances.

• A selection of 10 reticle shapes in 9 colour modes

A reticle is electronically displayed in the same plane as the target. The Talion memory contains ten reticle configurations and functions (direct shot type, ballistic, scalable and regular), all available in nine colour options.

• Precision aiming in the “Picture-in-picture” mode

The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.

• Variable colour palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks and react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, and Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are best suited to long-range observation at night.

Mounts
Talion riflescopes come in 4 versions:

• Without the mount
• Equipped with the Weaver U Mount
• Equipped with the Weaver USQD Mount
• Equipped with the Weaver LQD Mount

Specifications:

Main

• Sensor: 384x288 @ 12 µm (NETD <25 mK)
• Objective lens: F35 / 1.0
• Magnification: 2.5 – 10x (x8 zoom)
• Field of view (HxV): 10.7х8 / 18.2x13.7
• Detection range: 1350m

Sensor

• Type: uncooled
• Resolution: 384x288 pixels
• Pixel pitch: 17µm
• NETD: < 25mK
• Frame rate: 50Hz

Optics

• Objective lens: F35 / 1.0
• Magnification: 2.5 – 10
• Field of view (HxV), degrees / m @ 100 m: 10.7х8 / 18.2x13.7
• Eye relief: 50mm

Display

• Type: AMOLED
• Resolution, pixels 1024х768

Reticle

• Click value, H/V, mm at 100 m: 18 / 18 (on minimum magnification)
• Click range, H/V, mm at 100 m: 3600 / 3600
• Number of preloaded reticles: 10

Video Recorder

• Video / photo resolution: 1024x768 pixels
• Video / photo format: .mp4 / .jpg
• Built-in memory: 16GB

Wi-Fi

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GHz

Environmental Characteristics

• Degree of protection: IPX7 IP code (IEC60529)
• Operating temperature range: -25 – +50 °С

Connections and Compatibilities

• Max. recoil power on rifled weapon (Eo): 6000Joules
• Shock resistance on the smooth-bore rifles, caliber: 12
• Compatible mounts: Weaver U Mount, Weaver USQD Mount, Weaver LQD Mount
• Supported Application: Stream Vision 2

Power Supply

• Output voltage: 3.0 – 4.2V
• Battery type: APS 5T
• Capacity: 4900 mAh
• Operating time on battery pack (at t=22°C), h *: 9
• External power supply: 5 V, 9 V (USB Type-C Power Delivery)

Weight & Size

• Body material: Magnesium alloy
• Dimensions: 330x57x67mm
• Weight: 0.7kg (without APS 5T battery)

Trade Data

• SKU (Model #): 76566

Pulsar Axion XG30 Compact Thermal Imaging Monocular

Get more for less.

Enter the world of thermal vision with the Pulsar Axion thermal imaging monoculars. Pulsar's most compact and affordable devices are perfect for those hunters who wish to explore the possibilities of thermal vision without breaking the bank.

The Pulsar Axion XG30 Compact is a great tool for close-range observation in areas with thick vegetation. Fitting in one hand and light to carry, they still offer high thermal sensitivity and other premium features, including Wi-Fi connectivity and our latest image processing algorithms.

Features

European made thermal imaging sensors

Axion Compact Series is ideal for scanning and game finding. Quality European made sensors ensure excellent image in all conditions.

• 640×480/12 micron sensor provides enough detail for hot object identification.
• 384×288/17 micron sensor ensures thermal sensitivity.

Pocket-sized dimensions and light weight

Axion monoculars have a space-saving and pocket-sized design and weights less than 300 grams, which makes them the best thermal imaging monoculars for those who look for a truly compact option, both in hunting and tourism. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.

Wide field of view for easy scanning

Axion Compact monoculars have wide field of view which simplifies scanning and searching for hot objects. Wide field of view allows the observer to quickly spot all hot objects and focus on the most interesting ones, while simultaneously keeping all scene in view.

Photo and video recording

The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. Internal memory of the unit ensures many hours of recorded video and tons of photos.

Rugged magnesium alloy housing

Axion is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Sensitivity amplification levels

3 amplification levels combined with new filtration algorithms and fine brightness and contrast adjustments, increase the hunter’s chances for early detection of the animals under heavy weather and high humidity conditions. These settings provide optimized rendering of the target and background objects in the observation scene.

A selection of 8 color palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Stream Vision 2 app support for iOS and Android

The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

Other Features

• Frost-resistant AMOLED Display
• Long-life removable battery
• Charging with USB Type-C
• Picture-in-Picture Function
• IPX7 Waterproof rated
• User mode
• Digital zoom
• Tripod mount 1.4”

Specifications

Main

• Sensor: 640x480 @ 12 µm
• Objective lens: F30/1.2
• Magnification: 2 – 16 (x8 zoom)
• FOV (HxV), degrees: 14.6 x 9.2
• FOV (HxV), m@100m: 25.6 x 16.0
• Detection range: 1300

Sensor

• Type: uncooled
• Resolution, pixels: 640x480
• Pixel pitch, µm: 12
• Sensor NETD, mK: < 40
• Frame rate, Hz: 50

Optics

• Objective lens: F30/1.2
• Magnification, x: 2 – 16 (x8 zoom)
• FOV (HxV), m@100m: 25.6 x 16.0
• FOV (HxV), degrees: 14.6 x 9.2

Display

• Type: AMOLED
• Resolution, pixels: 640x480

Range performance

• Detection range, m: 1300

Video recorder

• Video / photo resolution, pixel: 960х600
• Video / photo format: .mp4 / .jpg
• Build-in memory, GB: 64

WI-FI

• Wireless protocol: Wi-Fi
• Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency, Ghz: 2.4 / 5

Environmental characteristics

• Degree of protection: IP code (IEC60529): IPX7 (waterproof)
• Operating temperature range, °С: -20 - +40

Connections and compatibilities

• Mount type: 1/4" socket
• Supported application: Stream Vision 2

Power supply

• Output voltage, V: 3.0 – 4.2
• Battery type: Li-Ion Battery Pack APS 3
• Capacity, mAh: 3200
• Operating time on battery pack, h at t=22°С: 7
• External power supply, V: 5 (USB Type C)

Weight & size

• Body material: Magnesium alloy
• Dimensions, mm: 144x41x69
• Weight, kg: 0,24 (without battery)

The NEW LEVEL OF THERMAL SPOTTING. A full featured, extra sensitive, ultra compact monocular, the Axion XQ30 Pro monocular is packed with qualities tailored to meet the needs of hunters and outdoor adventurers.

The Axion XQ30 Pro Thermal Monocular from Pulsar was designed for first-time users and seasoned outdoor enthusiasts alike, setting a new standard for thermal imaging monoculars, providing exceptional performance and a robust set of features in an ultra-compact body. It measures just 5.6x1.6 inches, making it the smallest thermal monocular in Pulsar’s lineup. Despite its compact size, it boasts a professional grade European made 384x288 thermal imaging sensor with NETD <25 mK, delivering unmatched sensitivity and detailed thermal images. These features ensure superior image quality for a variety of outdoor applications. Key features include digital zoom, Picture-in-Picture mode, eight color palettes, onboard multimedia suite and Wi-Fi connectivity. Built for the rigors of outdoor use, the Axion XQ30 Pro features a robust, waterproof housing, ensuring reliable performance in all weather conditions.

Features

Highly sensitive thermal imaging sensor

For image capture Axion XQ30 Pro uses professional-grade thermal imaging sensor with 384x288 pixels resolution and less the 25 mK thermal sensitivity. This ensures low levels of noise while providing excellent image detail and high contrast.

Wide field of view for easy scanning

Axion XQ30 Pro possesses 13.3° field of view which simplifies scanning and searching for hot objects. Wide field of view allows the observer to quickly spot all hot objects and focus on the most interesting ones, while simultaneously keeping all scene in view.

Compact pocket-sized design

Axion XQ30 Pro has a compact pocket-sized design and fits perfectly into one’s hand. It is an ideal option for hunting and tourism. The symmetrical design of the unit in combination with top placement of buttons ensures comfort of left- and right-hand use.

Rugged magnesium alloy housing

Axion XQ30 Pro is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time a metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Photo and video recording

The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 16 Gb of internal memory provide many hours of recorded video and tons of photos.

Sensitivity amplification levels

3 amplification levels combined with new filtration algorithms and fine brightness and contrast adjustments, increase the hunter’s chances for early detection of the animals under heavy weather and high humidity conditions. These settings provide optimized rendering of the target and background objects in the observation scene.

A selection of 8 color palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Stream Vision 2 app support for iOS and Android

The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

Frost-resistant AMOLED Display

A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

Long-life removable battery

A quick-change APS3 rechargeable battery provides 7 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special device or inside the device from a PC, household power system or power bank via USB. The same sources are used for external power supply of a thermal imaging device.

Fast charging with USB Type-C

The unit can be quickly charged with any charger supporting power delivery protocol via ordinary USB Type-C power cable.

IPX7 Waterproof rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Picture-in-Picture Function

Picture-in-picture displays a magnified image at the top-center 10% of the overall field of view for precise zooming on an object of interest.

Specifications:

Main

• Sensor: 384x288 pix. @ 17 µm (NETD <25 mK)
• Objective lens: F30/1.2
• Magnification: 2 - 8x (x4 zoom)
• Magnification in monocular mode / attachment mode, x -
• Field of view (HxV): 13.3x10 / 23.3?17.5 degrees / m@100m
• Detection range: 850m
• Sensor
• Type: uncooled
• Resolution: 384x288 pixels
• Pixel pitch: 17 µm
• NETD: <25 mK
• Frame rate: 50 Hz

Optics

• Objective lens: F30/1.2
• Magnification: 2 - 8x
• Magnification in monocular mode / attachment mode, x -
• Field of view (HxV): 13.3 degrees / m @ 100 m
• Eye relief: -
• Recommended magnification of the day scope, x

Display

• Type: AMOLED
• Resolution: 640x400 pixels

Range Performance

• Detection range: 1050m

Video Recorder

• Video / photo resolution: 528?400 pixel
• Video / photo format: .mp4 / .jpg
• Built-in memory: 16GB

Wi-Fi

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GGHz

Environmental Characteristics

• Degree of protection, IP code (IEC60529): IP?7 (waterproof)
• Operating temperature range: -25 – +40 °?

Connections and Compatibilities

• Compatible mounts: tripods
• Mount, type: 1/4"
• Remote control: -
• Supported Application: Stream Vision 2

Power Supply

• Output voltage: 4.2-3.0 V
• Battery type: Dual Li-Ion power system: APS 3 changeable battery (3.2 A·h)
• Capacity: 3200 mAh
• Operating time on battery pack (at t=22°C), h *: 8h
• External power supply: 5V (USB)

Weight & Size

• Body material: Magnesium alloy
• Dimensions: 144x41x69mm
• Weight: 0.3kg (with battery)

Trade Data

• SKU (Model #) : 77506

Pulsar IPS14 Battery Pack is an interchangeable standard power supply for Trail, Helion, Digisight Ultra, Accolade and Forward units. It grants 21-26 hours operating time and has a smart charging feature as well.

Specifications:
• Type: Li-Ion
• Capacity: 12,888 mAh
• Operating time: 21-26 h (with Helion)
• Weight: 240 g
• Dimensions: 73 x 47 x 50 mm
• Output voltage: 3.7 V
• Full charge time: 12 hours.

Interchangeable standard power supply for Pulsar Trail / Helion / Accolade / Digisight Ultra / Forward F.
IPS 7A is designed to extend self-contained operating time of the digital night vision riflescopes Digisight Ultra N450 / N455 LRF.

Specifications:
• Capacity: 6400 mAh
• Operating time: 10-13 h (with Helion)|
• Weight: 0.13 kg
• Dimensions: 73 x 47 x 30 mm
• Output voltage: 3.7 V
• Battery type: Li-ion

Pulsar APS 5 Battery Charger

Is designed to charge battery packs APS 5 used with thermal imaging monoculars Axion XQ / Axion XQ LRF.

Miniature power elements used in Axion XM, Axion XQ, Digex and Thermion models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with included charger station or in the unit connected to USB.This is the same battery that ships with the Axion XQ monoculars. This battery does NOT fit any other Pulsar product. Grants up to 6 hours operating time.

Interchangeable standard power supplies for Axion (APS3) and Thermion (APS2, APS3) devices.

Miniature power elements used in Axion and Thermion models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with included charger station or in the unit connected to USB.

Specifications:
• Dimensions: 74x24x24
• Weight: 0.06 kg
• Output voltage: 3.6 V
• Battery type: Li-ion
• Capacity: 3200 mAh
• Compatibilities: Axion models

Note - These can also be used in the Thermion/Digex Style Optics, there is a taller battery cap that comes in the box with these optics to accommodate for the extra length.

The Pulsar APS 2 Battery Pack is an interchangeable standard power supply for Pulsar Thermion devices. The miniature power elements used in Axion and Thermion models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with included charger station or in the unit connected to USB.

Specifications:
• Dimensions: 59 x 24 x 24
• Weight: 0.04 kg
• Outpout Voltage: 3.6 V
• Battery Type: Li-Ion
• Capacity: 2000 mAh
• Compatible With: Pulsar Thermion/Digex (NOT AXION)
