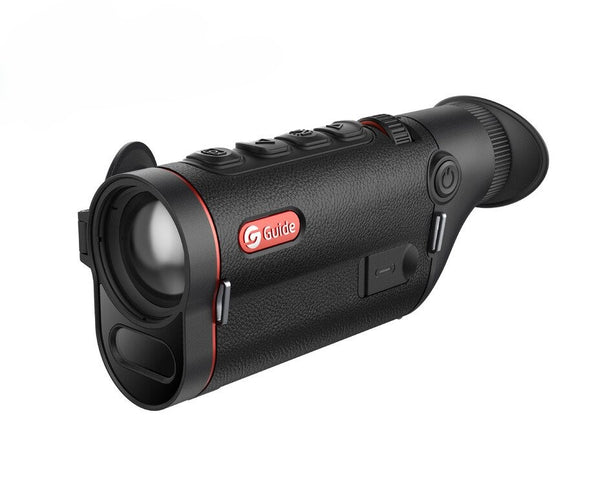

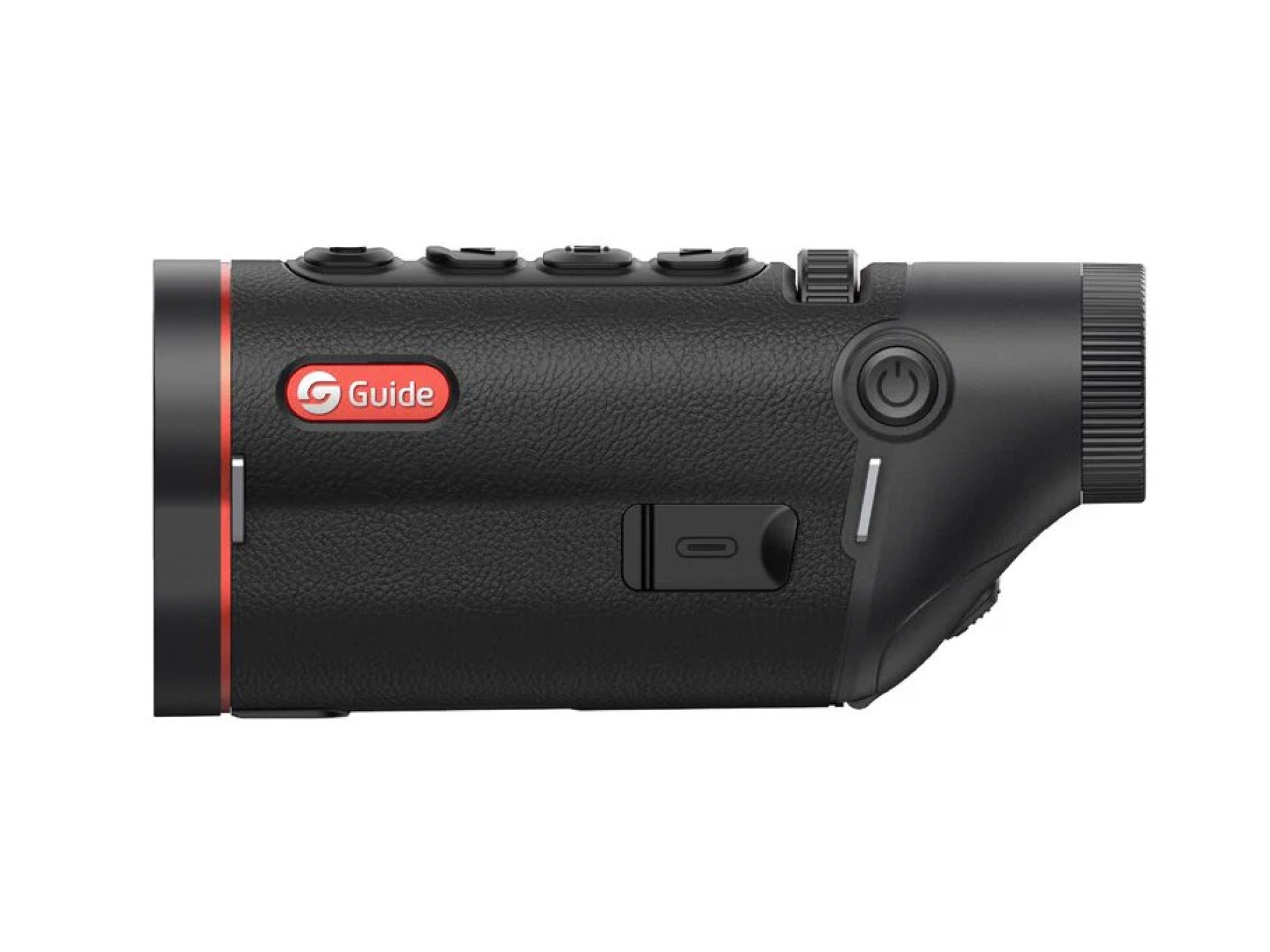

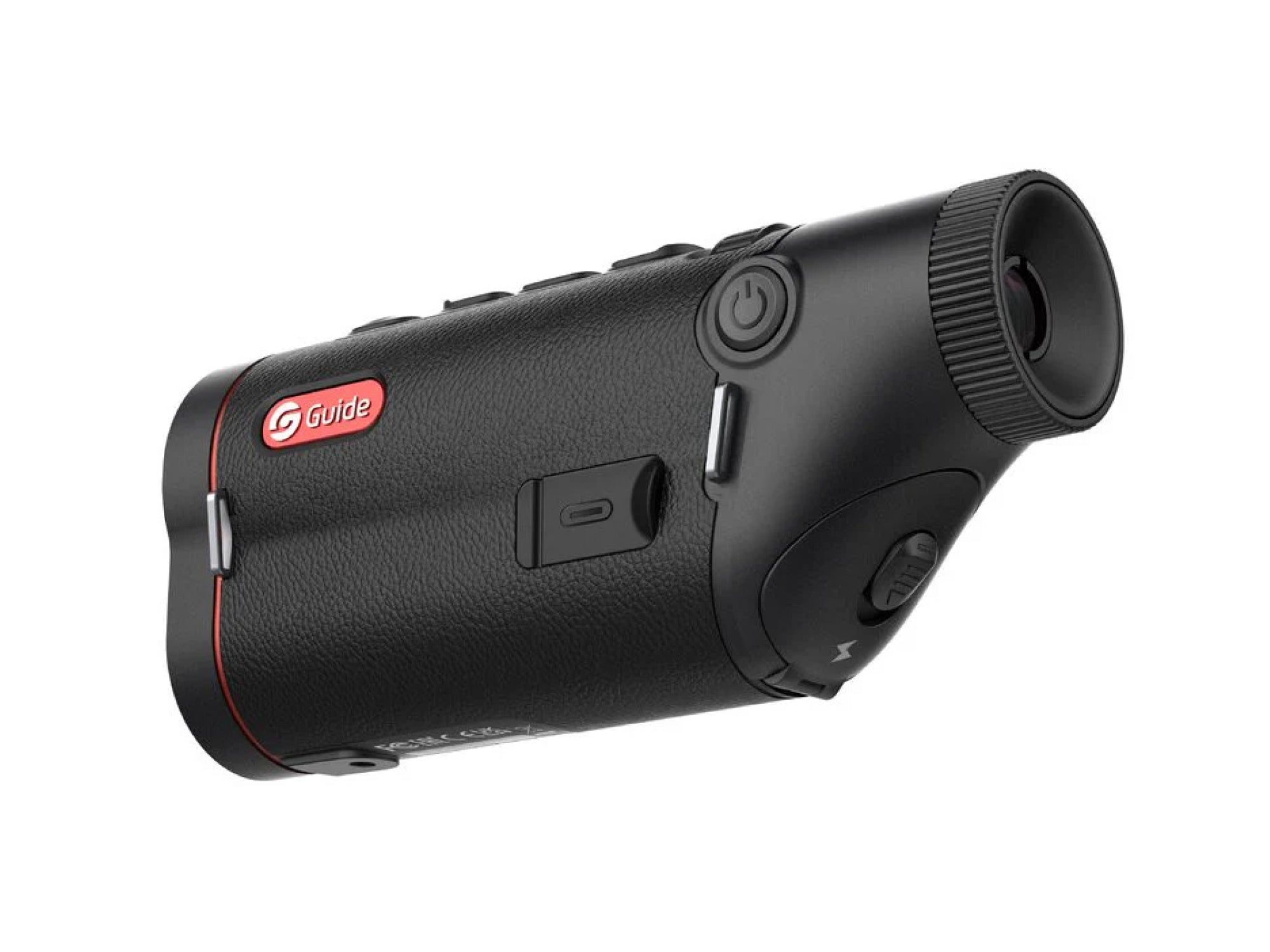

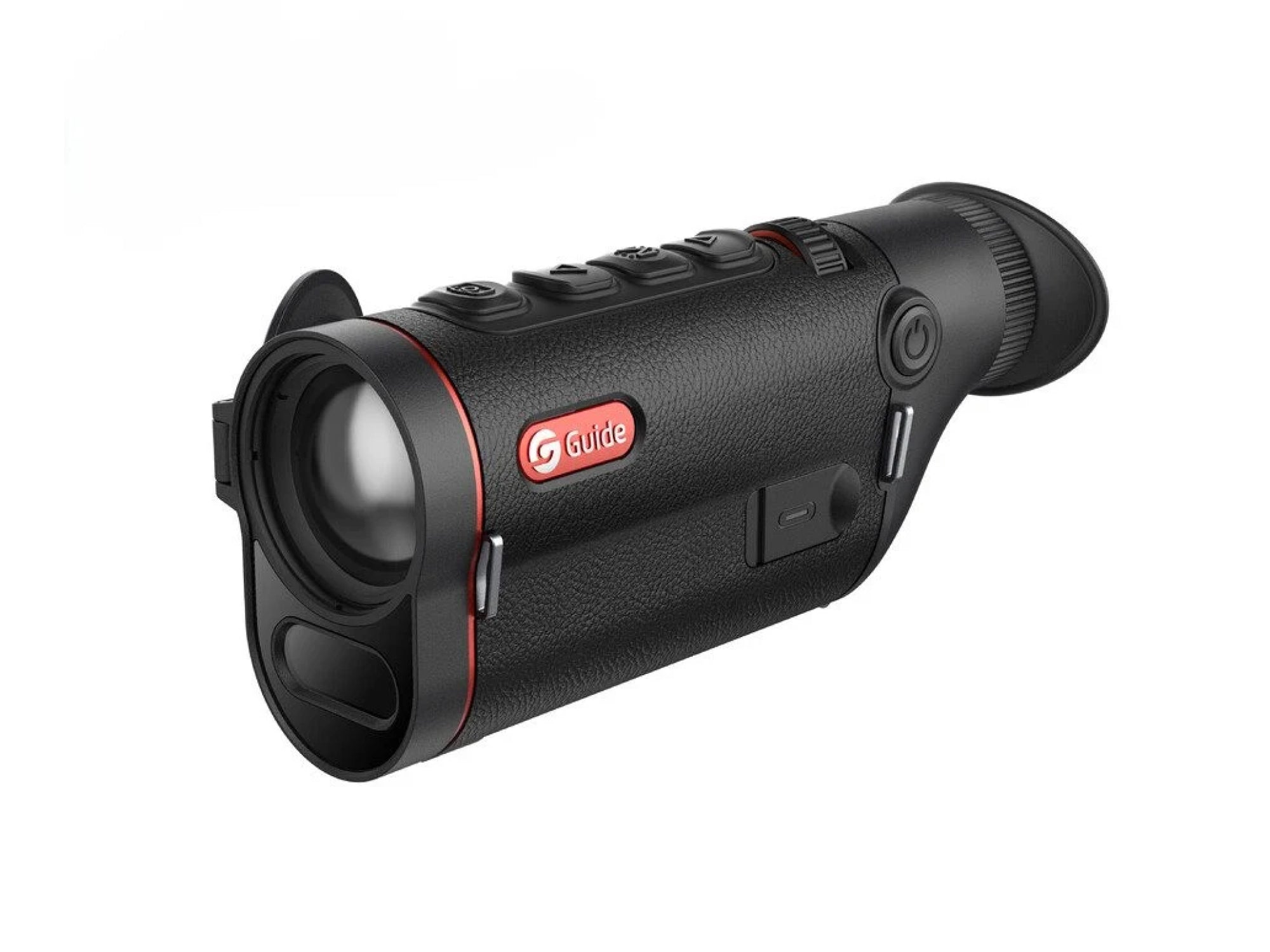

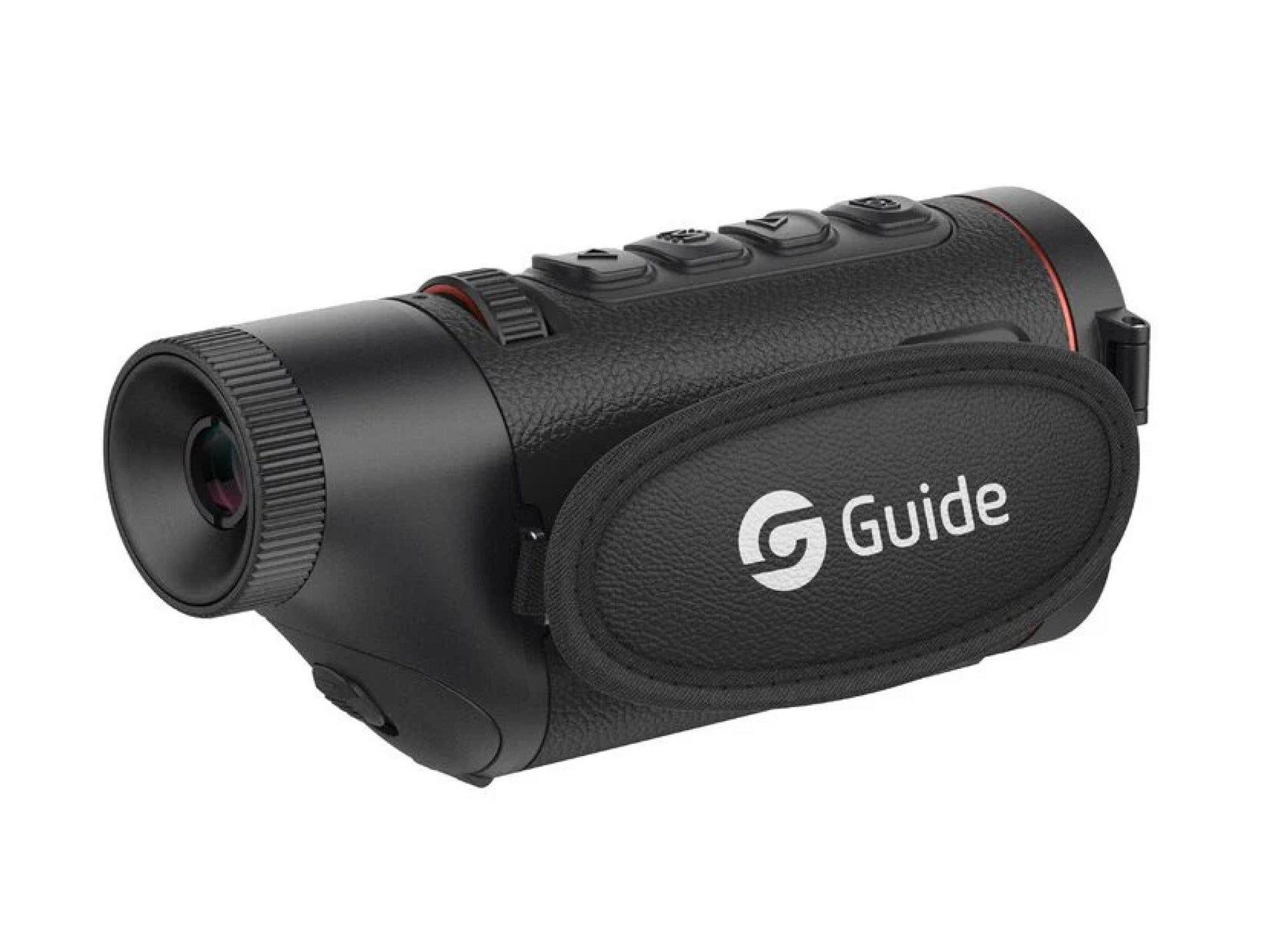

Guide TD433L Thermal Monocular with Laser Rangefinder 35mm 50Hz

Sale price $2,799.00 NZD

The Guide TD433L Thermal Monocular combines a 400x300 thermal sensor, integrated 1000m (1090yd) laser rangefinder, and compact one-handed design for hunting, spotting, and field observation. Its 35mm lens and 50Hz refresh rate deliver smooth thermal imaging in difficult conditions, while the upgraded AMOLED display, dual-band Wi-Fi, and onboard recording make it well suited to long sessions in the field.

Add to Wishlist
Barcode: 6970883551965 SKU: 453329
Guide TD433L Thermal Monocular with Laser Rangefinder 35mm 50Hz

Guide TD433L Thermal Monocular with Laser Rangefinder 35mm 50Hz

$2,799.00
Description

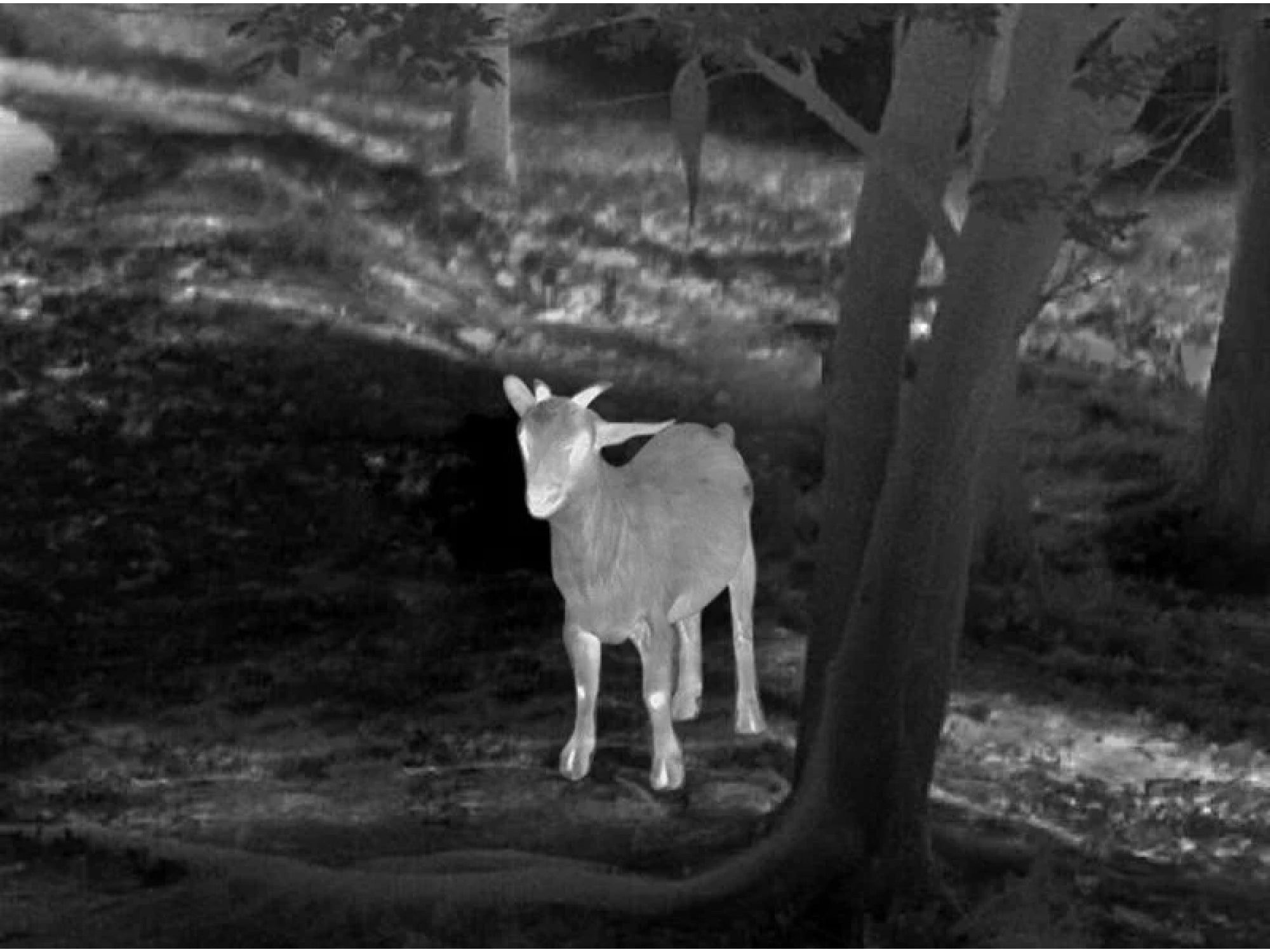

The Guide TD433L is built for hunters and outdoor users who want thermal performance, distance measurement, and portability in one compact unit. Its 35mm F1.0 lens works with the 400x300 thermal sensor and 50Hz refresh rate to deliver smooth thermal imaging with strong detail recognition at extended distances, including a detection range of up to 1800m (1950yd).

One of the standout features is the integrated laser rangefinder, which gives accurate readings out to 1000m (1090yd) without turning the monocular into a bulky unit. Combined with the fingertip focus roller and ambidextrous control layout, the TD433L stays practical to operate with one hand while moving through rough terrain or scanning from a fixed position.

The upgraded AMOLED display improves image clarity and viewing comfort, particularly during long observation sessions. Built-in recording with audio capture allows you to save footage directly to the 16GB internal storage, while dual-band Wi-Fi and Bluetooth connectivity add flexibility for sharing content or connecting accessories.

With IP67 protection, replaceable 18650 battery power, and up to 10 hours of runtime, the TD433L is designed for demanding field use where reliability matters just as much as image quality.

Key Features

  • 400x300 Thermal Sensor: High-sensitivity 12um VOx detector with 25mK NETD delivers sharp thermal detail in low-visibility conditions.
  • Integrated Laser Rangefinder: Built-in 1000m (1090yd) LRF provides accurate distance measurement without adding bulk.

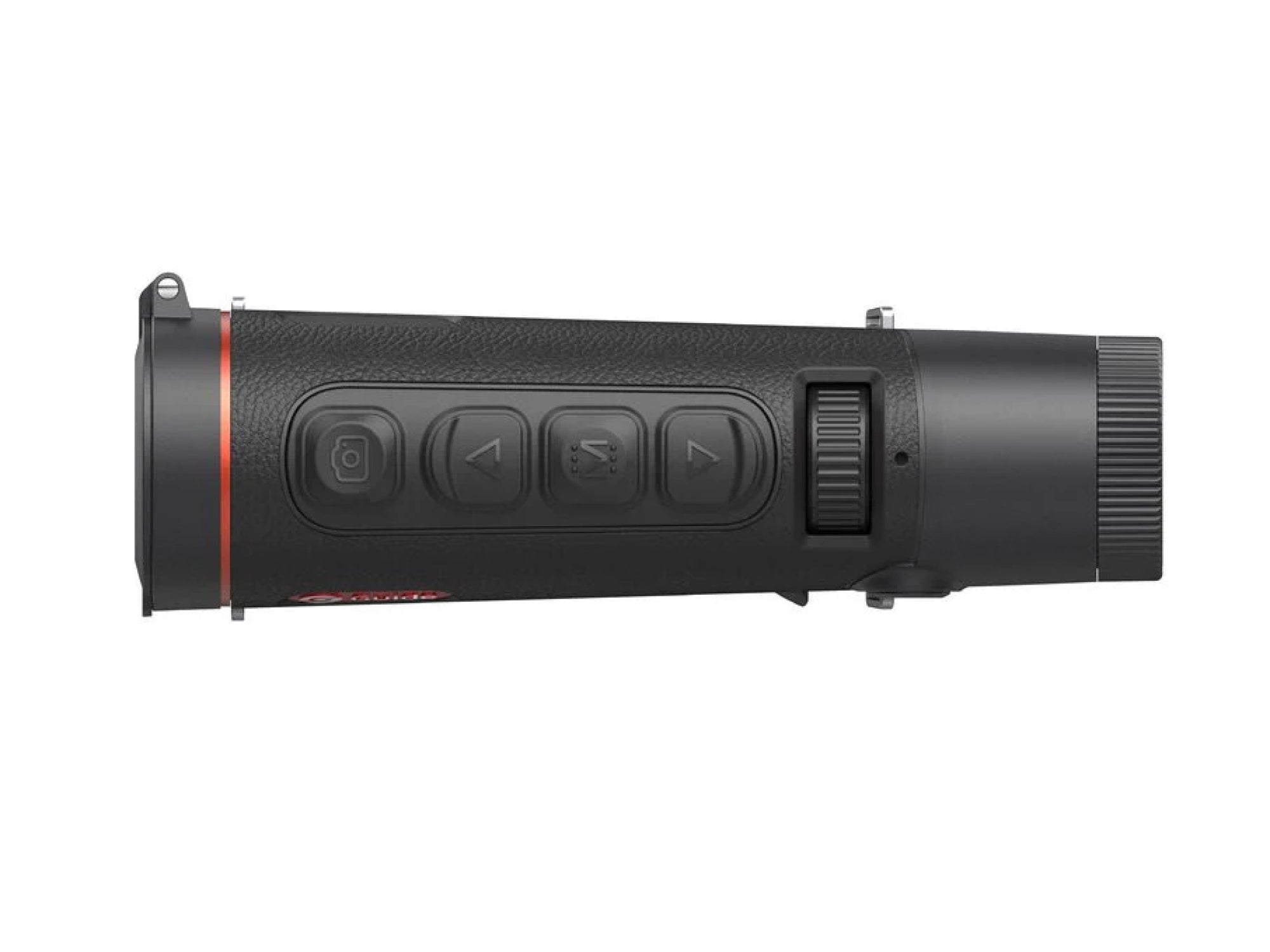

  • Fingertip Focus Control: Mini focusing roller allows fast one-handed focus adjustment while maintaining target visibility.
  • Ambidextrous Housing: Symmetrical design supports comfortable left or right-handed operation in the field.
  • AMOLED Display: 0.36 inch 1280x960 AMOLED screen provides clearer detail and more comfortable viewing during extended use.
  • Long Runtime: Replaceable 18650 battery supports up to 10 hours of operation for extended hunts and observation sessions.
  • Smart Recording System: Capture photos, video, and audio recordings directly to the built-in 16GB storage.
  • Dual-Band Wi-Fi Connectivity: 2.4G and 5G Wi-Fi support fast wireless connection and real-time content sharing.
  • IP67 Waterproof Rating: Sealed construction handles wet weather, dust, and demanding outdoor environments.
  • Compact Field Design: Lightweight 370g (13.05oz) body remains easy to carry during long periods of scanning and stalking.
  • Sensor Type: Uncooled VOx Infrared Detector, 8 to 14um
  • Sensor Resolution: 400x300 at 12um
  • NETD: 25mK
  • Frame Rate: 50Hz
  • Objective Lens: 35mm F1.0
  • Field of View: 7.9 degrees x 5.9 degrees
  • Field of View at 100m: 14m x 10m (45.9ft x 32.8ft)
  • Magnification: 2.9x to 11.6x

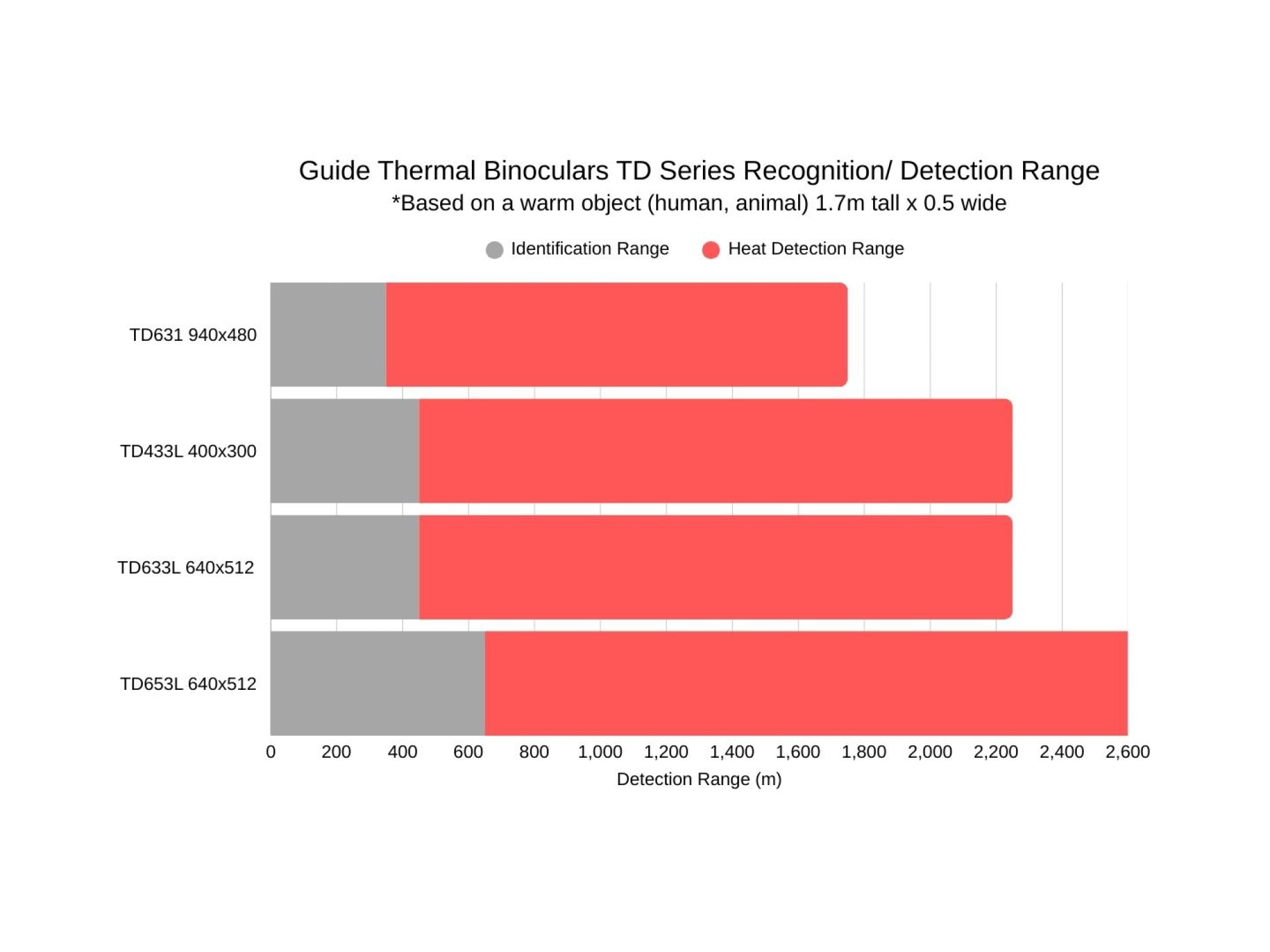

  • Detection Range: 1800m (1950yd)
  • Focus Type: Manual
  • Display Type: 0.36 inch AMOLED 1280x960
  • Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
  • Eye Relief: 20mm (0.79 inch)
  • Diopter Adjustment: -6 to +6
  • Eyepiece Zoom: 13.8x
  • Laser Rangefinder Range: 1000m (1090yd)
  • Wi-Fi: 2.4G and 5G
  • Interface: USB-C
  • Additional Connectivity: Bluetooth
  • Recording Functions: Photo, video, and audio recording
  • Internal Storage: 16GB
  • Battery Type: Single replaceable 18650 battery
  • Operating Time: Up to 10 hours
  • Operating Temperature: -20C to 50C (-4F to 122F)
  • Waterproof Rating: IP67
  • Weight: 370g (13.05oz)
  • Dimensions: 159 x 54 x 74mm (6.26 x 2.13 x 2.91 inch)
  • Included Accessories: Device, dust-free cloth, hand strap, eye mask, battery charger, 18650 battery, 5V 2A adapter, USB-A to USB-C cable, quick start guide, warranty card
  • Optional Accessories: Bluetooth remote control, spare 18650 battery

1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty
