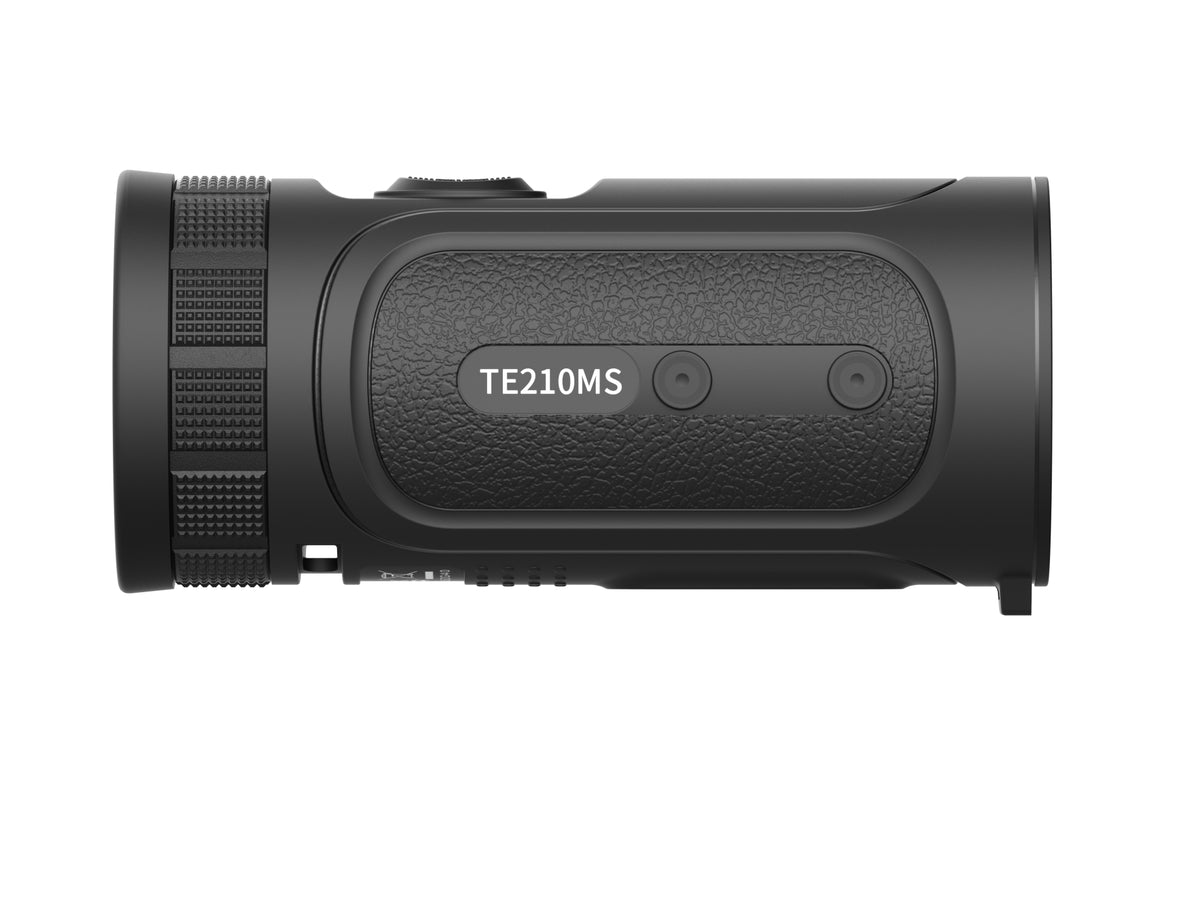

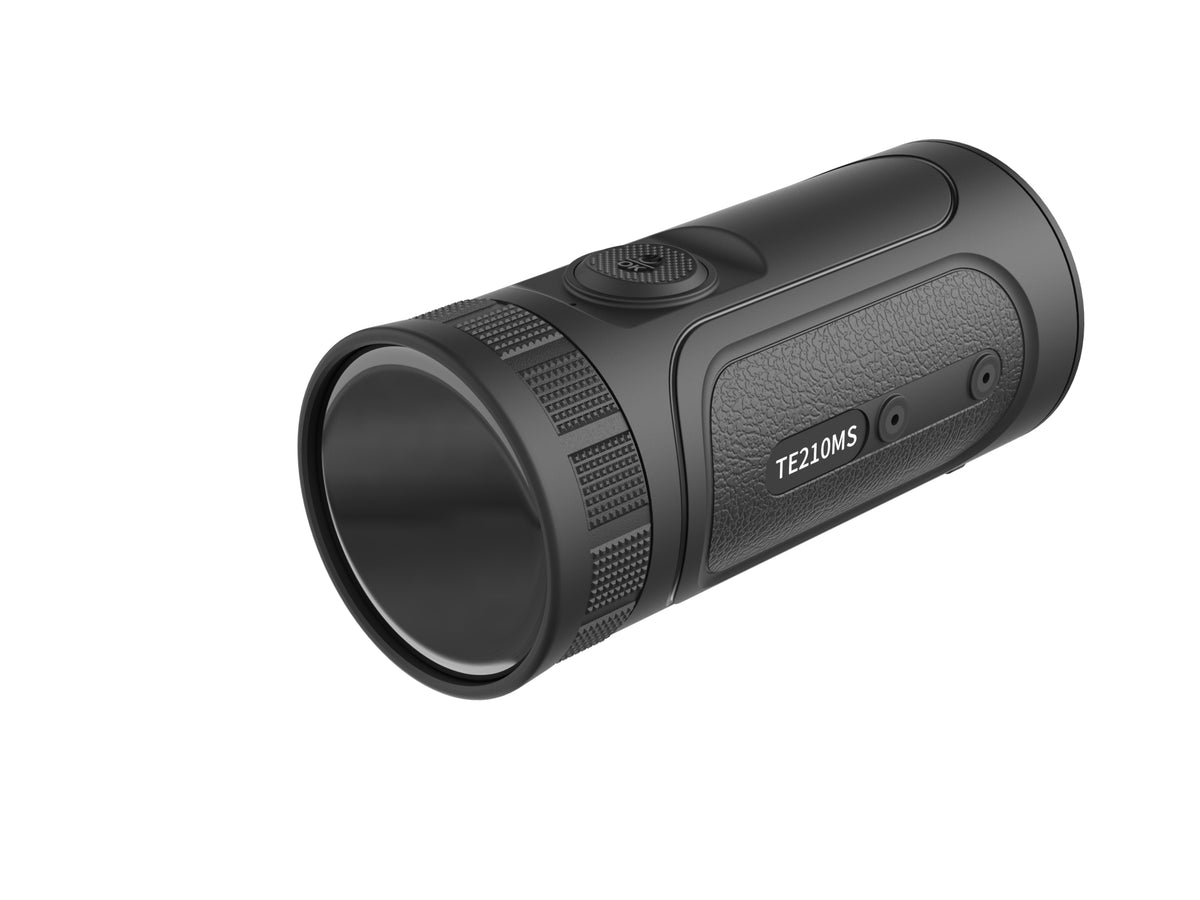

The Guide TE210MS ApexVision handheld thermal monocular puts its 256x192 thermal imaging system into a compact format designed around direct touchscreen viewing. Instead of relying on a conventional eyepiece, the model-specific specifications list a 36.3mm (1.43 inch) 466x466 AMOLED touchscreen, giving you a clear way to view the thermal image and work through the device controls. The 10mm (0.39 inch) F1.0 focus-free lens provides a stated detection range of up to 500m (550yd), while the 50Hz frame rate supports smooth viewing when subjects or the monocular are moving.

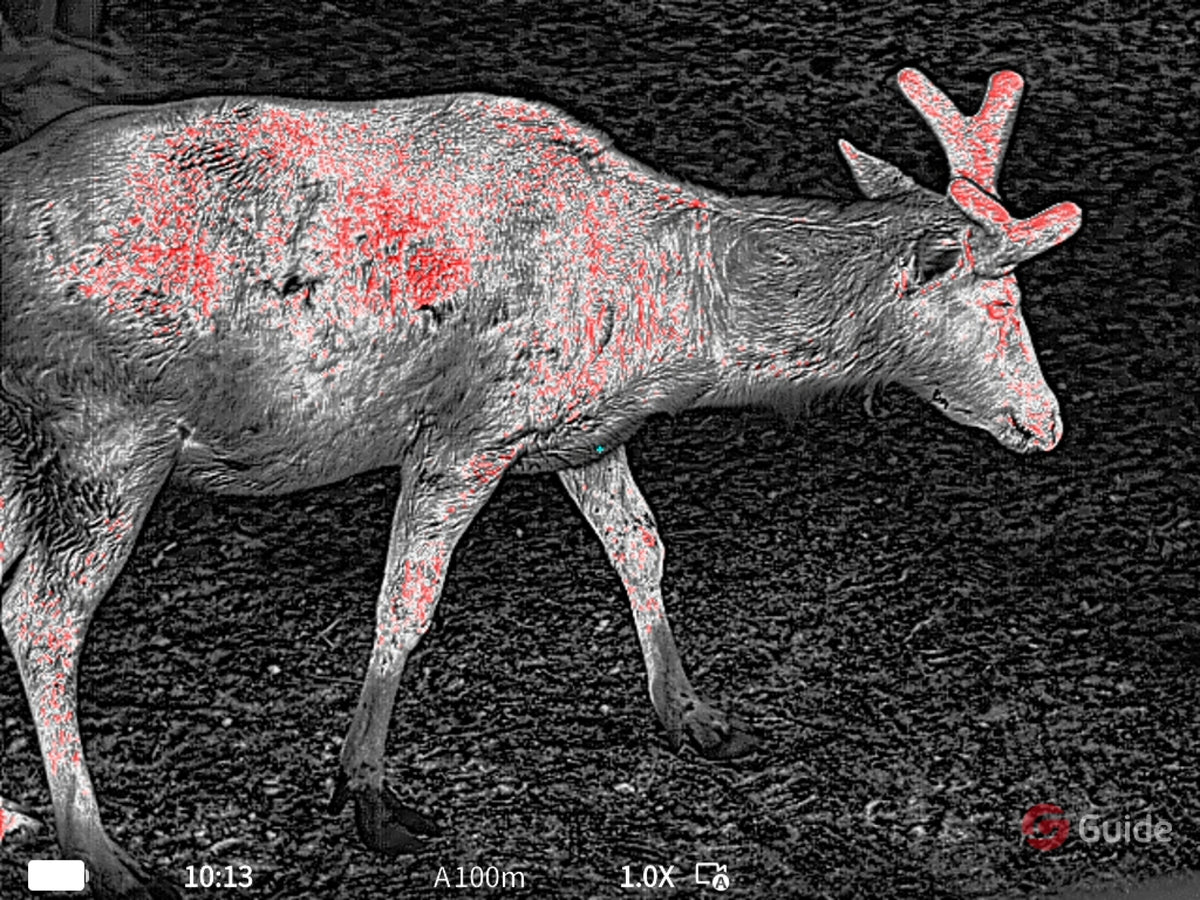

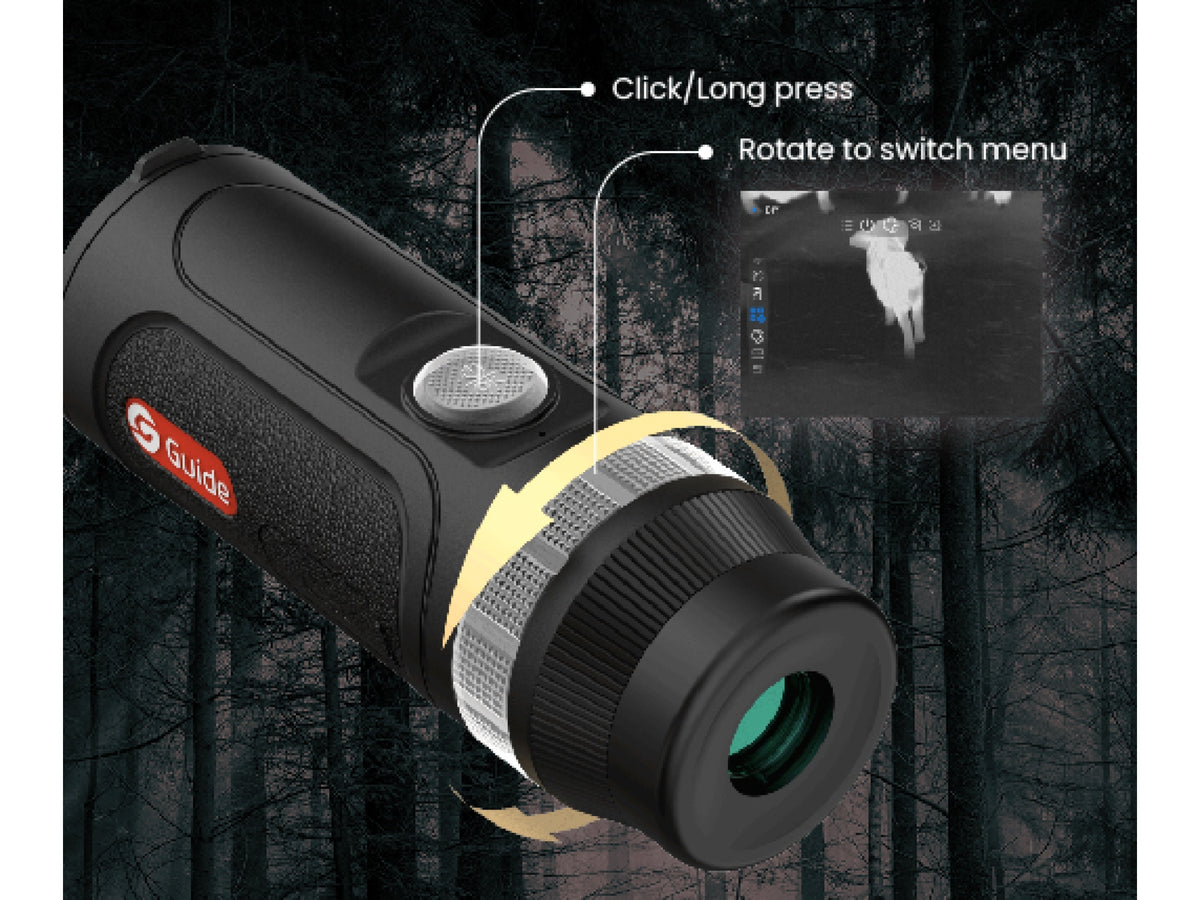

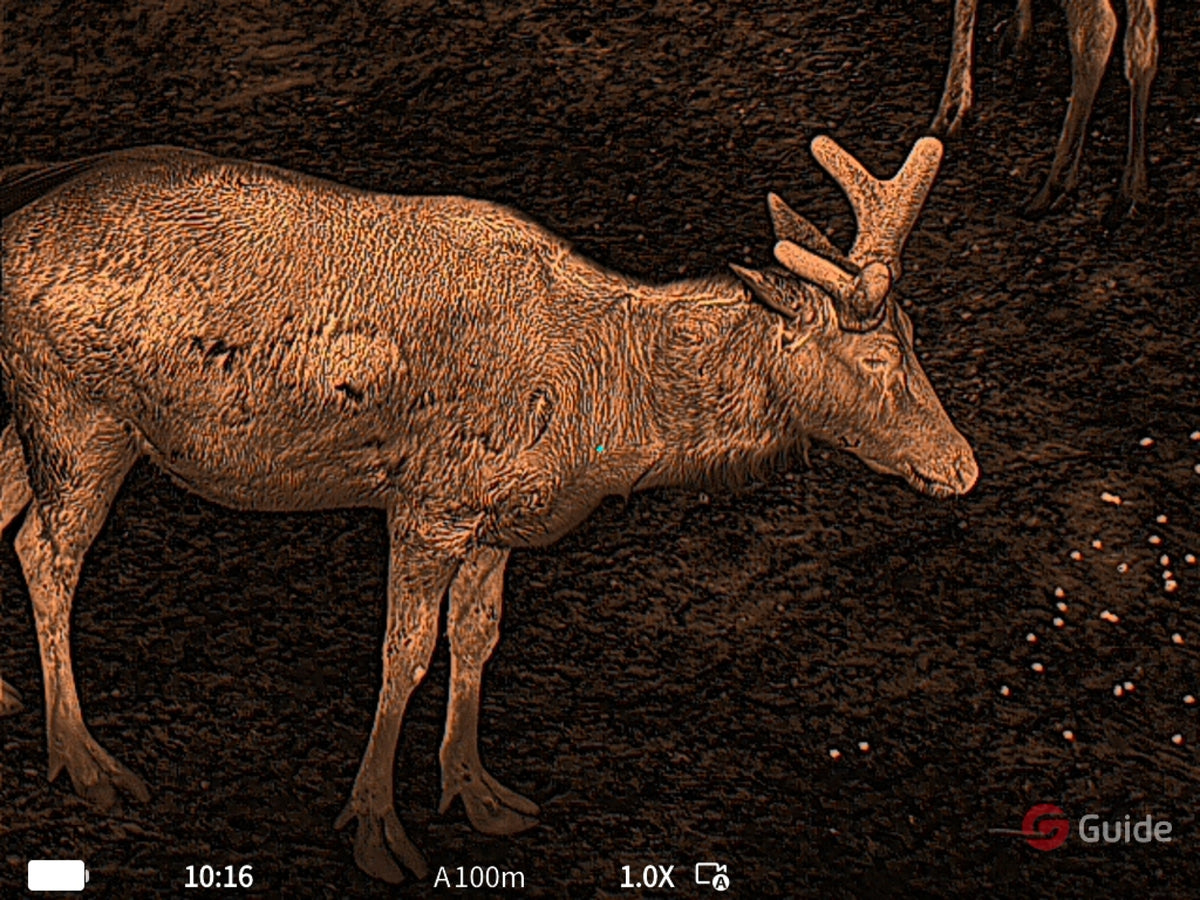

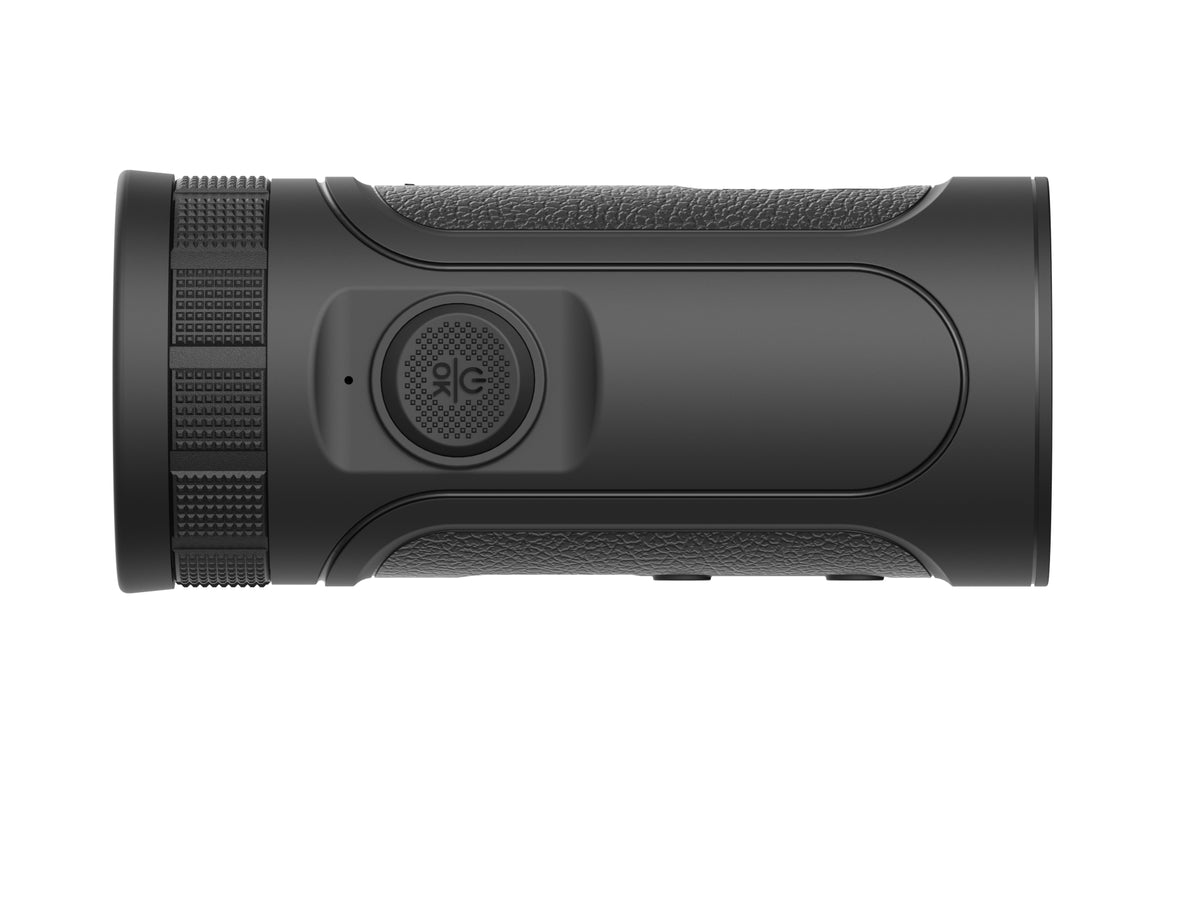

ApexVision S1 brings the detector, processing platform, and imaging algorithm together as one system. Guide identifies this architecture as the ApexCore S1 detector, Nexus 1.0 platform, and Hyper-Light 2.0 algorithm. The physical controls are kept straightforward with the one-button and one-ring layout, while seven colour palettes give you different ways to interpret the thermal image depending on the scene and your viewing preference.

The TE210MS also works as a recording device. Photos and videos with audio can be saved to the 64GB internal storage, with 2.4GHz and 5GHz Wi-Fi plus Bluetooth included for its supported wireless functions. Power comes from a built-in rechargeable battery rated for up to 6 hours of operation, with 20W charging support and a stated 10-minute charge providing up to 1 hour of continuous use.

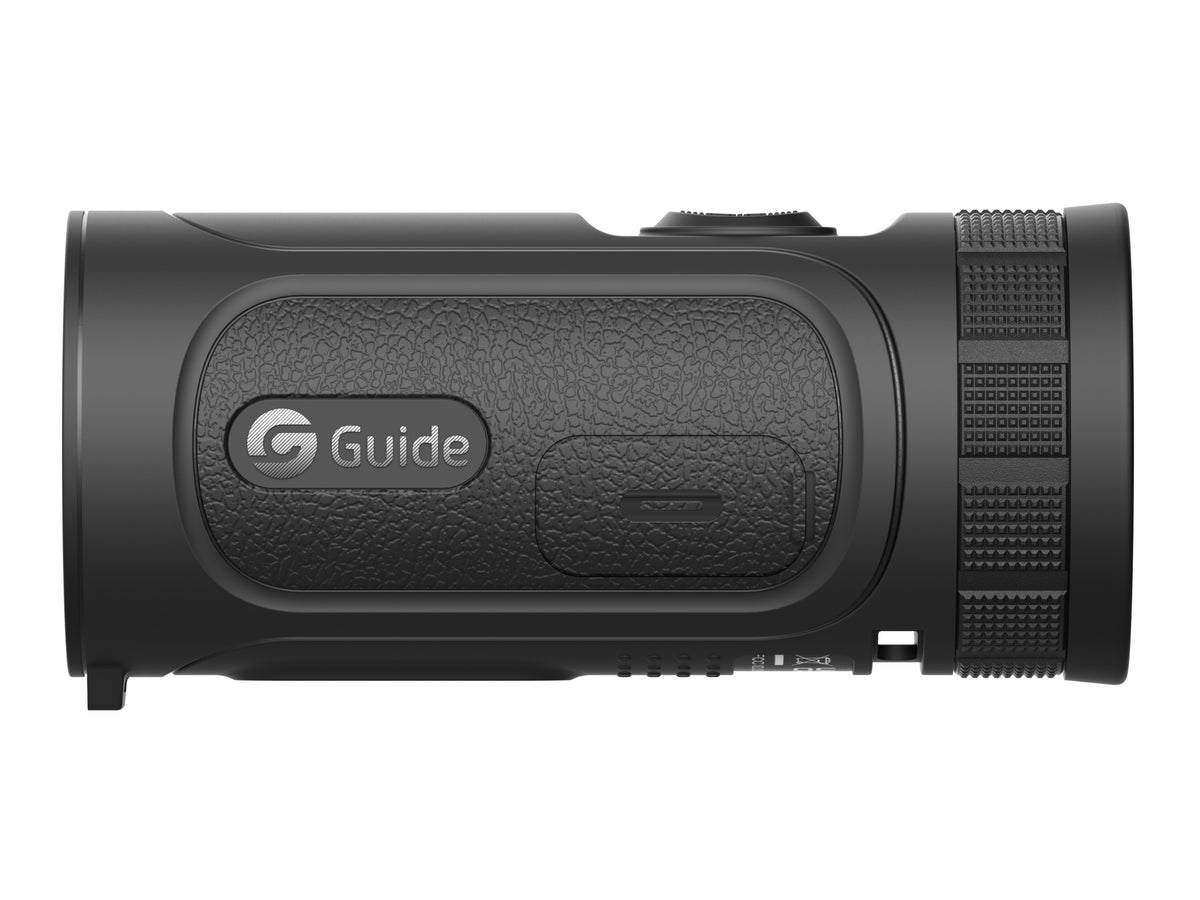

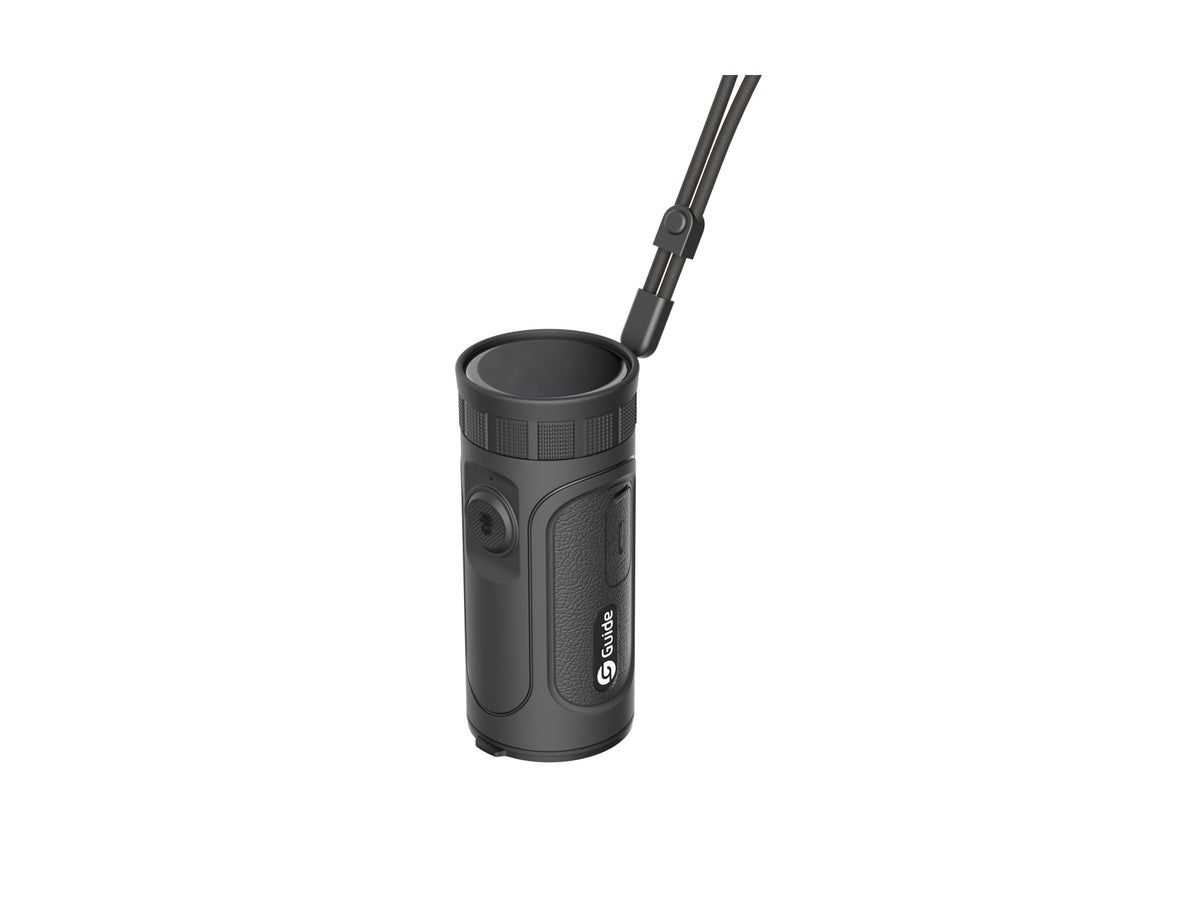

At 49 x 49 x 111mm (1.93 x 1.93 x 4.37 inch) and a specified weight of 200g (7.05oz), the TE210MS keeps that feature set in a small handheld format. IP67 encapsulation and a stated operating range from -20C to 50C (-4F to 122F) round out the design for outdoor observation in changing conditions.

Key Features

• ApexVision S1 Architecture: Combines the ApexCore S1 detector, Nexus 1.0 platform, and Hyper-Light 2.0 algorithm as the core imaging system behind the TE210MS.

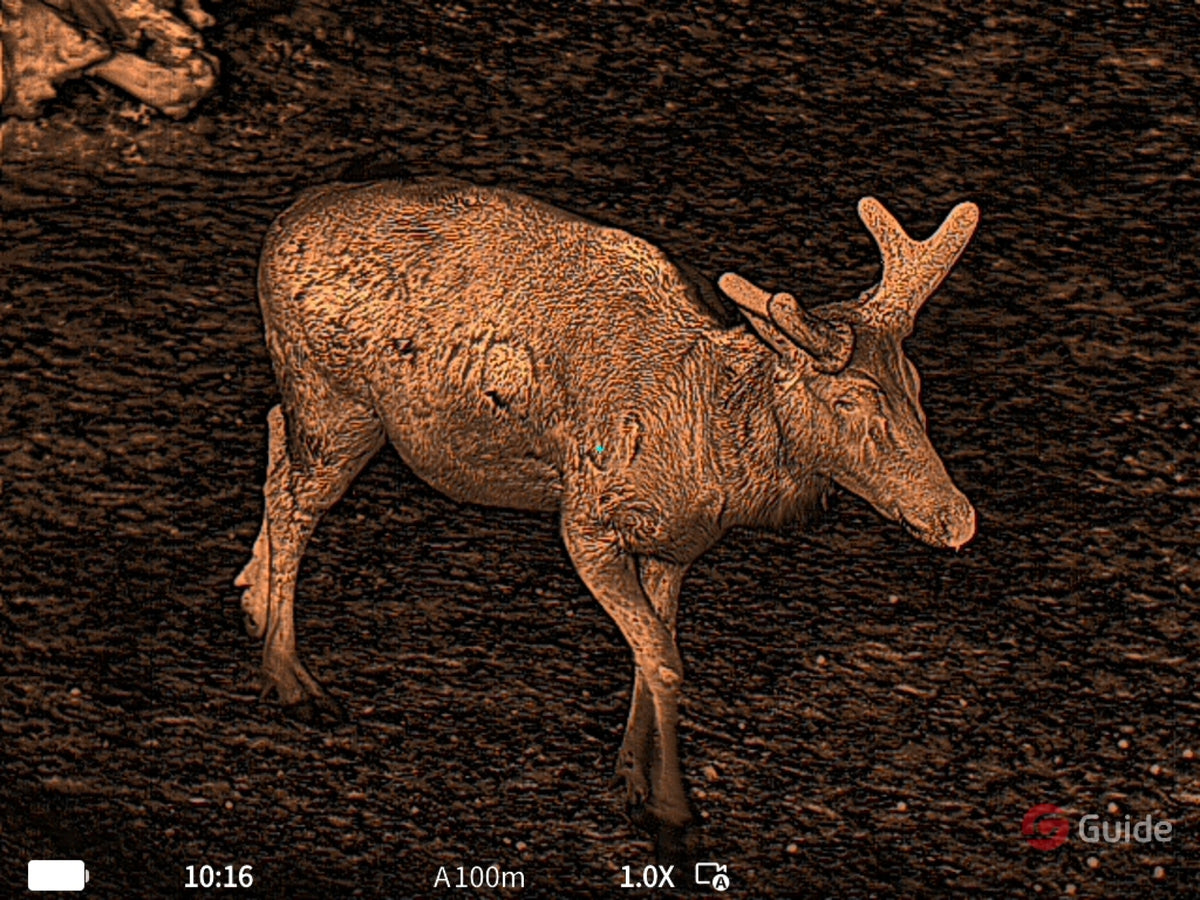

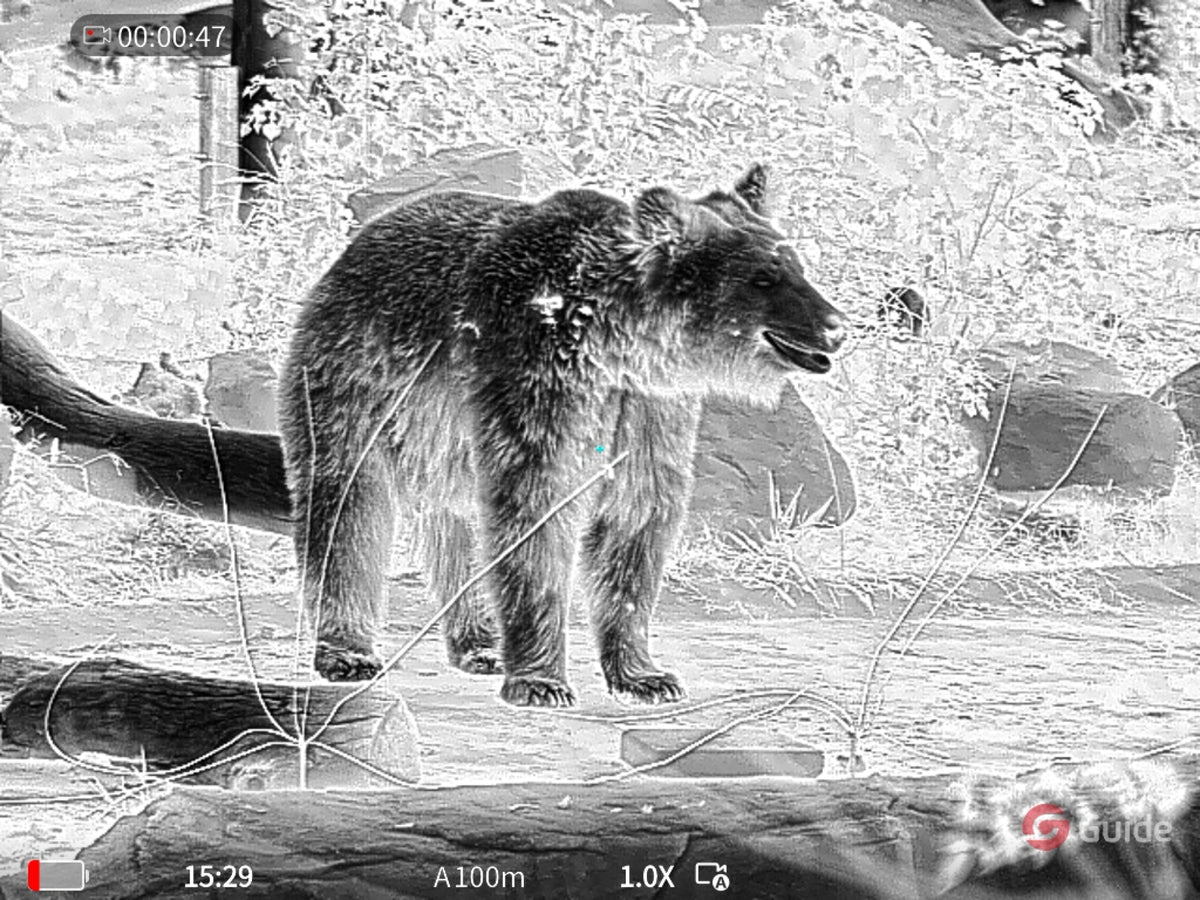

• Sensitive 256x192 Thermal Imaging: A 256x192 detector, 15mK NETD sensitivity, and 50Hz refresh rate support detailed thermal viewing with smooth motion.
• Open-View AMOLED Touchscreen: The 36.3mm (1.43 inch) 466x466 AMOLED touchscreen lets you view and control the thermal image directly without holding an eyepiece against your eye.
• 500m Detection Range: The 10mm (0.39 inch) F1.0 focus-free lens provides a stated detection range of up to 500m (550yd) with no manual focusing required.
• 20W Quick Charging: The built-in rechargeable battery provides up to 6 hours of operating time, while a 10-minute charge can provide up to 1 hour of continuous use.

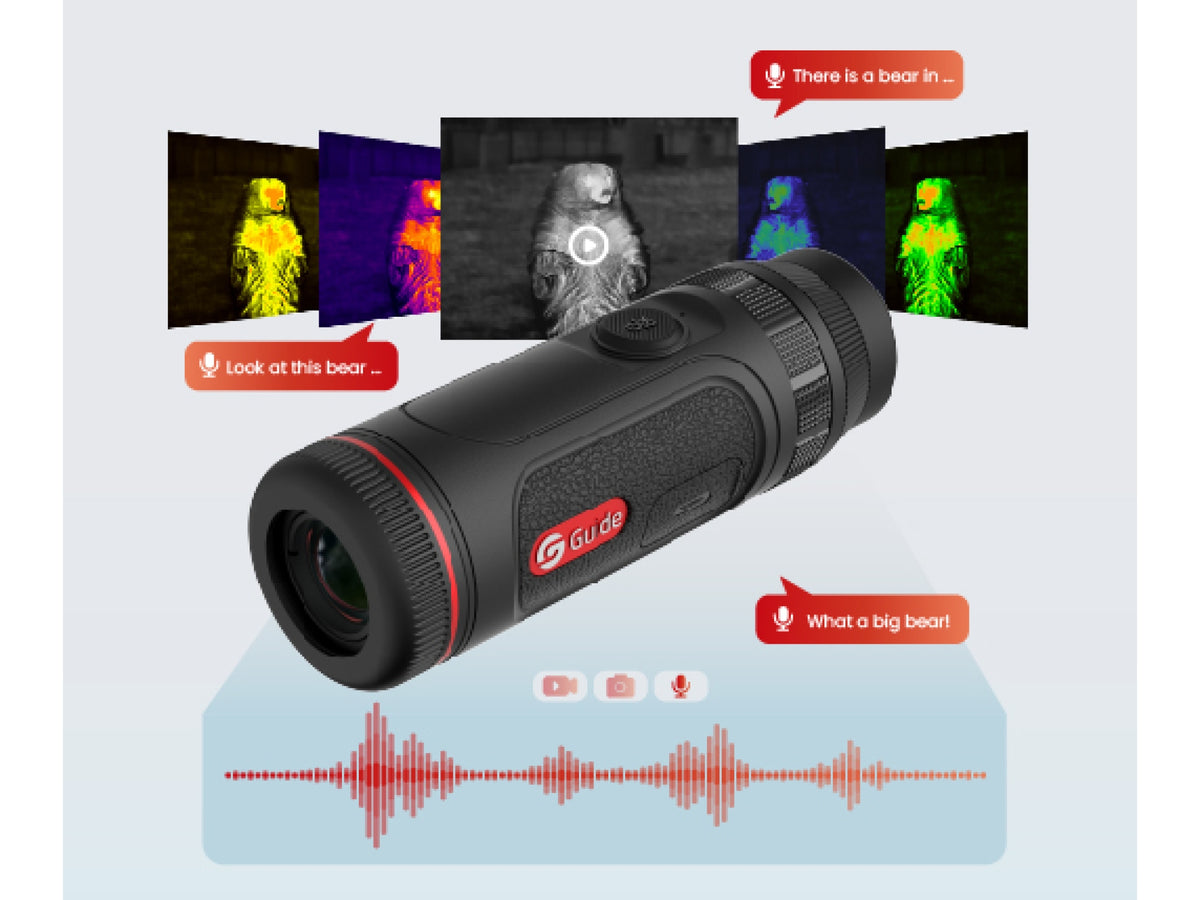

• Photo, Video And Audio Recording: Photos and videos with audio recording can be stored directly on the 64GB internal memory for later viewing or sharing.

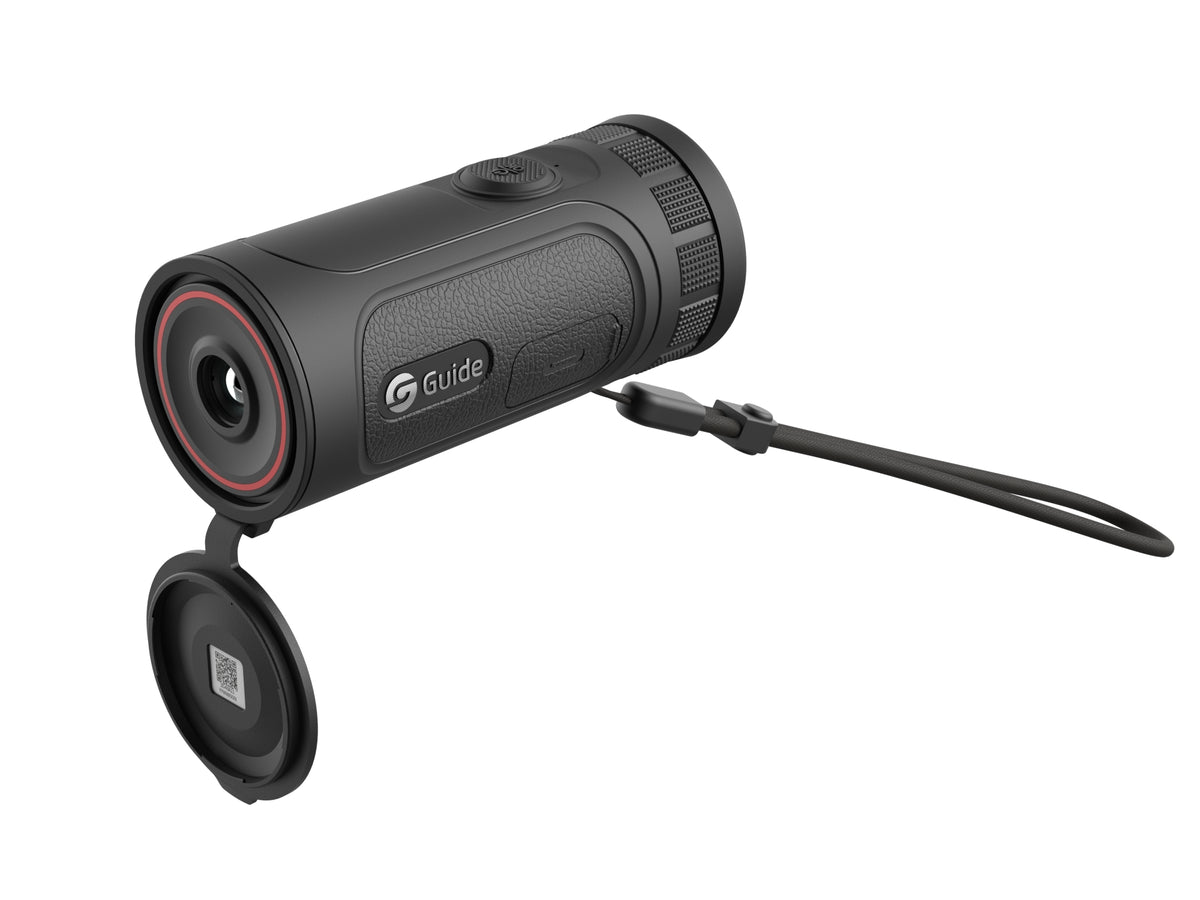

• Compact IP67 Construction: At 200g (7.05oz), the TE210MS keeps the handheld format compact while IP67 encapsulation provides protection for changing outdoor conditions.
